Overview

The EP(D)M produced by Kumho Polychem is a highly functional special synthetic rubber that is mainly used for automotive parts and has excellent resistance to heat, ozone, and chemicals. With a lower specific gravity compared with other synthetic rubbers, it can be applicable for high-filling mixing, meaning it has a high economic feasibility, making it widely applicable in various areas such as automotive body sealing, tire tubes, hoses, electric wires, and subsidiary construction materials.

Catalogue Inquiries

EPM 상세정보 표
Product Name	Mooney Viscosity (ML1+4,100°C)	ENB Content (Wt.%)	Ethylene Content (Wt.%)	Extender Oil (PHR)	Product Form (1)	Characteristic	Purpose
KEP020P	25	-	71	-	P	Low mooney viscosity & high MFR & high processablility, excellent low temperature flexibility in the modification of polyolefin thermoplastics(PP, PE)	Blend with PP : TPO, sponge, films, sheets, automotive applications (bumper, spoiler, instrument panel) Blend with PE : films
KEP070P	69	-	70.5	-	P	Medium mooney viscosity, high impact resistance in the modification of polyolefine thermoplastics(PP, PE)	Blend with PP : Injection moldings(bumper etc.), films, sheets and polyolefin modifiers
KEP110	40	-	52	-	B	Bale product with an amorphous structure, easy processing and excellent heat resistance properties	Blend with PP : Injection moldings(bumper etc.), films, sheets and polyolefin modifiers
KEP0520T	10	-	50	-	B	Low molecular mass and narrow molecular mass distribution, and non crystalline structure suitable for lubricant viscosity index improvement material	Lubricant oil viscosity index improver (SSI 25%(ASTM D6278))
KEP0530	30	-	50	-	B	Low molecular mass and narrow molecular mass distribution, and non crystalline structure suitable for lubricant viscosity index improvement material.	Lubricant oil viscosity index improver (SSI)35%(ASTM D6278))
KEP2060	65 (2)	-	53.5	-	B	Medium mooney viscosity EPM grade with broad molecular weight distribution & good processability and excellent heat resistance	Heat resistant belt, cables, TPO

(1) Product Form : P = Pellet, B = Dense Bale

EPM 상세정보 표
Product Name		Mooney Viscosity (ML1+4,125°C)	ENB Content (Wt.%)	Ethylene Content (Wt.%)	Extender Oil (PHR)	Product Form (1)	Characteristic	Purpose
KEP435		33	2.3	57	-	B	Low mooney viscosity & slow vulcanization speed, excellent heat & ozone resistance, optimum scorch safety in blending with IIR	Automobile tire tubes, waterproof sheet, heat resistant belt

EPM 상세정보 표
Product Name	Mooney Viscosity (ML1+4,125°C) (2)	ENB Content (Wt.%)	Ethylene Content (Wt.%)	Extender Oil (PHR)	Product Form (3)	Characteristic	Purpose
KEP210	23	5.7	64.5	-	B	Low mooney viscosity & high vulcanization speed, good processability & high extrusion Speed	Wires, cables, automobile parts, window seals, sponge
KEP510	23	5.7	71	-	B	Good roll processability, excellent extrudability, fast vulcanization speed, high hardness	Wires, cables, various types of extruded parts, glass run for high hardness
KEP2320	25	4.7	57.5	-	B	Excellent roll processability, good processing even without oil, excellent extrusion, good electrical property	Electrical insulation, brake parts, gaskets, corner molding, molded sponge
KEP7141	27	4.5	51.5	-	B	Low mooney viscosity & excellent roll processability, excellent low temperature properties, medium vulcanization speed	Sponges, wires, cables, electrical parts, gaskets, industrial parts, oil free compound(brake hose)
KEP240	42	4.5	56.5	-	B	Medium vulcanization speed & good processability, good balance of vulcanization speed and physical properties	Various types of industrial parts, automobile parts and injection molding goods etc.
KEP570P	53	4.5	70	-	P	High impact resistance in the modification of polyolefin thermoplastics(PP,PE)	Blend with PP : injection moldings(bumper etc.), films, sheets and polyolefin modifiers, various types of automobile parts
KEP570F	59	4.5	70	-	FB	High mooney viscosity & high ethylene content, high green strength & excellent extrudability, medium vulcanization speed & high filler loading	Automobile & Industrial hose, washing machine hose, window seals, various types of automobile Parts
KEP5770	73	5.0	74	-	FB	High mooney viscosity & high ethylene content, Excellent green strength & excellent extrudability, medium vulcanization speed & high filler loading	Automobile & Industrial hose, washing machine hose, window seals, various types of automobile Parts
KEP270	71	4.5	56.5	-	B	High mooney viscosity & medium vulcanization speed, high filler loading	Heat resistant hose, washing machine hose, window seals, various types of automobile Parts
KEP2380	82 (1)	5.7	55.5	-	SFB	Tailored molecular weight distribution grade, good processability, fast extrusion, fast vulcanization speed, quality consistency, productivity Improvement	60-70 shore a dense body sealings, radiator hose, molded goods, gaskets
KEP281F	82 (1)	5.7	67	-	FB	High mooney viscosity & high vulcanization speed, high filler loading & excellent extrusion property, good collapse resistance	Weatherstrip solid, window seals, various types of automobile parts, heat resistant hose
KEP282F	90 (1)	5.7	73	-	FB	High mooney viscosity & High ethylene content, high vulcanization speed, high filler loading & excellent extrusion property, good collapse Resistance	Weatherstrip solid, window seals, various types of automobile parts, heat resistant hose
KEP1030F	86 (1)	4.5	61.5	-	FB	High mooney Viscosity, high filler loading & good dimensional stability, balanced low temperature flexibility, good physical properties	Weatherstrip solid & extruded profiles, radiator hose, heat resistance hose
KEP2371	115 (1)	7.0	70	-	B	High mooney Viscosity, high vulcanization speed, high filler loading & excellent extrusion properties, good collapse resistance	Weatherstrip solid, window seals, various types of automobile parts, heat resistance hose

(1) ML1+8, 125°C
(2) Mooney Viscosity : Massed Value
(3) Product Form : B = Dense Bale, FB = Friable Bale, P = Pellet, SFB = Semi-Friable Bale

EPM 상세정보 표
Product Name	Mooney Viscosity (ML1+4,125°C) (2)	ENB Content (Wt.%)	Ethylene Content (Wt.%)	Extender Oil (PHR)	Product Form (3)	Characteristic	Purpose
KEP330	28	7.9	56.5	-	B	Low mooney viscosity & excellent processability, high vulcanization speed, blend with diene rubber	Tire coverstrip, white sidewall, window seals, gaskets, packings, sponges
KEP650L	41	8.7	59	-	B	Medium mooney viscosity & excellent processability, high vulcanization speed	Sponges, window seals, industrial parts
KEP650	49	8.7	59	-	B	Medium mooney viscosity & excellent processability, high vulcanization speed	Sponges, window seals, industrial parts
KEP350	56	7.9	57	-	B	High mooney viscosity & excellent processability, high vulcanization speed, blend with diene rubber	Tire coverstrip, white sidewall, window seals, gaskets, packings, sponges
KEP370F	69	8.1	59	-	FB	High mooney viscosity & excellent processability very high ENB content & high vulcanization speed, suitable for blending with diene Rubbers	Weather strip body/door seal, gasket, packings, general sponges etc.
KEP2480	81 (1)	8.9	57.5	-	SFB	Tailored molecular weight distribution grade, good processability, fast extrusion, fast vulcanization speed, quality consistency, productivity improvement, good compression set	Sponge body sealings, window seals
KEP9590	95 (1)	10.0	52.5	-	SFB	High mooney viscosity & low ethylene content, good processability, fast extrusion, ultra-high vulcanization speed, quality consistency, productivity improvement, excellent sponge compression set & softness	Sponge body sealings, window seals
KEP9570E	70 (1)	10.0	55	20	SFB	Non-aromatic paraffinic oil & tailored molecular weight distribution & good processability, compression set and collapse resistance & excellent extruding surface and softness	Sponge Body Sealings, automotive parts
KEP8512	88 (4)	8.0	55	-	B	High mooney viscosity EPDM with high ENB and Ethylene contents & high filler loading & good physical properties, compression set and low temperature properties & excellent processability with broad molecular weight distribution	60-70 Shore A Dense Body Sealings, Radiator & Automotive Hose, Building Profile

(1) ML1+8, 125°C
(2) Mooney Viscosity : Massed Value
(3) Product Form : B = Dense Bale , FB = Friable Bale, SFB = Semi-Friable Bale

EPM 상세정보 표
Product Name	Mooney Viscosity (ML1+8,125°C) (2)	ENB Content (Wt.%) (1)	Ethylene Content (Wt.%) (1)	Extender Oil (PHR)	Product Form (3)	Characteristic	Purpose
KEP960N	49	5.7	70	50	B,FB	Non-aromatic paraffinic oil, high mooney viscosity & high ethylene content, high filler loading & good physical properties	Radiator hose, window seals, extruded goods in general, automobile parts, moldings, washing machine gasket
KEP960NF	49	5.7	70	50	B,FB	Non-aromatic paraffinic oil, high mooney viscosity & high ethylene content, high filler loading & good physical properties	Radiator hose, window seals, extruded goods in general, automobile parts, moldings, washing machine gasket
KEP980N	58	4.5	70.5	75	B	Non-aromatic paraffinic oil, high mooney viscosity & high ethylene content, high filler loading, good physical Properties	Window seals, moldings in general, shock absorbing rubber(muffler hanger/engine mount), washing machine gasket, TPV
KEP4640E	47	4.5	64	75	B	Non-aromatic paraffinic oil for low hardness products & high mooney viscosity and medium Ethylene contents EPDM & good physical and low temperature properties & excellent ozone resistance	Automotive parts, shock absorbing rubber (muffler hanger/engine Mount), TPV
KEP4640EP	44	4.5	64	75	P	High molecular mass, medium ethylene product with excellent low temperature characteristics and mechanical property. Especially, it consists non-aromatic paraffinic oil as a new resource, making it suitable for low hardness products to provide excellent UV stability, when mixed with colors. Pellet type which offers excellent processability when applied to TPV	Automotive parts, shock absorbing rubber (muffler hanger/engine Mount), TPV
KEP901N	50	4.8	70	100	B	High mooney viscosity & 100phr Non-aromatic paraffinic oil extended, suitable for low hardness compound & TPV parts	Molding in general, low hardness compounds, damping parts, TPV
KEP902N	52	4.5	66.5	100	B	High mooney viscosity & 100phr Non-aromatic paraffinic oil extended, suitable for low hardness compound & TPV parts	Molding in general, low hardness compounds, damping parts, TPV

(1) Value of base polymer
(2) Mooney Viscosity : Massed Value
(3) Product Form : B = Dense Bale , FB = Friable Bale

MAH-GRAFTED EP[D]M 상세정보 표
Product Name		Melt Index (2.16kg / 230°C)	Yellowness	Product Form (1)	Characteristic	Purpose
KEPA 1130		3	14	P	The product is a special polymer made by grafting maleic anhydride into EP(D)M blend. It can also be blended with a polar polymer. * Impact modification: polyamides, polyesters and others. * Compatibilizer: Polyamide/polyethylene, polyamide/polypropylene, and others. * Coupling agent: Polyethylene/CaCO3, polypropylene/glass and others.	Ski surf bindings, automotive wheel cap, oil separator, helmet, and others.
KEPA 1150		2	11	P	The product is a 100% rubber-type special polymer made by grafting maleic anhydride into polyolefin elastomer, which contains EP(D)M. It can also be blended with a polar polymer. * Impact modification: Polyamides, polyesters, etc. * Compatibilizer: Polyamide/polyethylene, polyamide/polypropylene, etc. * Coupling agent: Polyethylene/CaCO3, polypropylene/glass, etc.	Ski surf bindings, automotive wheel cap, oil separator, helmet, and others.

EPDM Structure

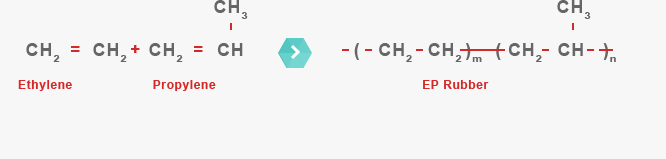

Copolymer

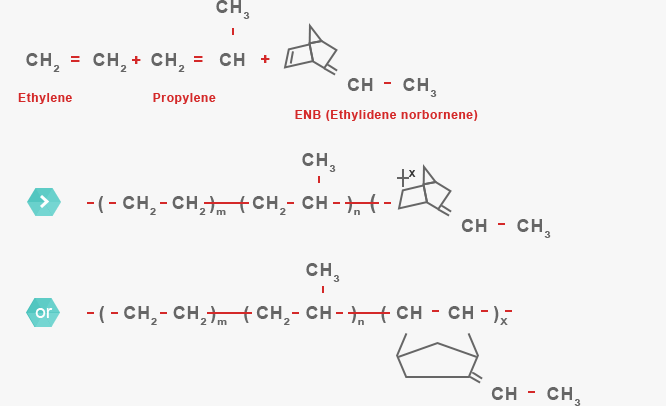

Terpolymer
